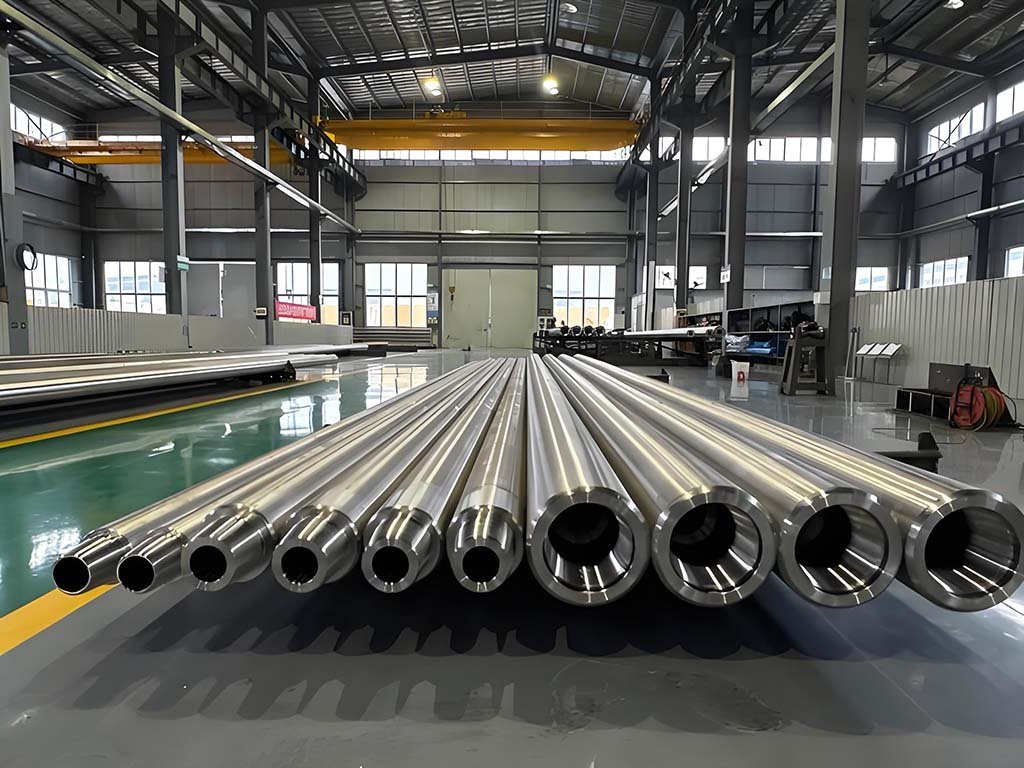

P550 Non-Magnetic Drill Collar: Consistent Permeability (≤1.010) & Direct Factory Pricing
Why Measurement Accuracy Fails in Real Drilling Conditions
In modern directional drilling and horizontal well operations, measurement accuracy is not only determined by MWD/LWD tools, but also heavily influenced by the stability of the drill string components.
In many cases, failures are not caused by equipment malfunction, but by inconsistencies in the non-magnetic drill collar itself.
These problems often lead to repeated calibration, non-productive time (NPT), and increased operational costs.
A non-magnetic drill collar must therefore perform reliably not just in laboratory conditions, but in real and often harsh drilling environments.
What Makes Our P550 NMDC Different From Standard Suppliers
Most suppliers focus on meeting basic technical specifications. However, in real-world applications, consistency and stability matter far more than isolated performance data.
01.
Stable Magnetic Permeability for MWD Tools — Not Just Meeting the Limit
Most manufacturers can achieve ≤1.010
But the question is:
👉 Is the batch consistency stable?
What we control is:
Minimally small fluctuations in permeability between different batches
Stable performance even after long-term use
👉 Value to customers:
Avoiding measurement drift and reducing recalibration
02.
Longer Service Life — Not Just High Strength
Many products exhibit “high strength” but still fail prematurely:
👉 The reasons are: uneven microstructure or residual stress
We address this by:
optimizing the forging ratio
controlling the heat treatment path
👉 Actual results:
Increased service life
Frequent replacement frequency
Reduced overall cost (not unit price)
03.
Machining Precision That Protects Your Tools
Many suppliers overlook:
👉 The impact of geometric accuracy on MWD tools
We focus on controlling:
Coaxiality
Straightness
Thread accuracy
👉 Customer benefits:
Reduced tool wear
Improved connection stability
Preventing downhole accidents
04.
Process Consistency — The Real Risk Control
What oil and gas customers truly fear isn’t “a bad first batch,” but rather:
👉 The second batch is different.
We offer:
Fixed process window
Full process traceability
Stable batch delivery
👉 Result: You won’t get “good samples,” but “every batch is the same.”
05.
Engineering Support — Not Just a Supplier
Most manufacturers only sell products; we offer:
Material selection advice (P530 vs P550)
Working condition matching analysis
Custom size support
👉 You get a solution, not just a steel piece.
Technical Specifications
Element | Symbol | Content (%) |
Carbon | C | ≤ 0.05 |
Manganese | Mn | 18.00 – 20.00 |
Chromium | Cr | 18.00 – 20.00 |
Nickel | Ni | 4.00 – 5.00 |
Molybdenum | Mo | 0.50 – 1.00 |
Nitrogen | N | 0.45 – 0.65 |
Silicon | Si | ≤ 0.50 |
Outer Diameter (OD) | Yield Strength (min) | Tensile Strength (min) | Elongation (min) | Hardness (min) |
≤ 6 7/8″ (174.6 mm) | 140 KSI (965 MPa) | 150 KSI (1034 MPa) | 20% | 300 HB |
> 6 7/8″ to 11″ (279.4 mm) | 130 KSI (896 MPa) | 140 KSI (965 MPa) | 20% | 285 HB |
Property | Specification / Limit | Testing Standard |
Relative Permeability | ≤ 1.010 (Typical 1.001) | ASTM A342 |
Magnetic Hot Spot / Gradient | ≤ 0.05 µT | API Spec 7-1 |
Intergranular Corrosion | No Cracks / No Corrosion | ASTM A262 Practice E |
Pitting Corrosion Resistance | Excellent | NACE MR0175 Compliant |
Specification | Details |
OD Range | 3 1/8″ – 11″ (79.4 mm – 279.4 mm) |
Length | 10 ft – 31 ft (3.0 m – 9.45 m) |
Bore Tolerance | +1/16″ / -0 (Trepanned and drift tested) |
Straightness | ≤ 1/1000 (0.1% of overall length) |
Thread Connections | API REG, NC, FH, IF (Cold rolled thread roots) |
Manufacturing Standard | API Spec 7-1 & NS-1 (upon request) |
What Problems We Help You Avoid
- ❌ Measurement errors due to unstable permeability
- ❌ Unexpected failures in deep wells
- ❌ Frequent replacement increasing cost
- ❌ Inconsistent quality between batches
These problems often lead to repeated calibration, non-productive time (NPT), and increased operational costs.
A non-magnetic drill collar must therefore perform reliably not just in laboratory conditions, but in real and often harsh drilling environments.
With TIPTOP NMDC, you minimize these risks.
Quality You Can Verify
API-related manufacturing standards
Third-party inspection available
Material traceability
Full inspection before delivery
More Than a Supplier — A Technical Partner
We understand that selecting the right non-magnetic drill collar involves more than choosing a product.
Our team supports customers with:
Material selection based on application conditions
Technical recommendations for drilling environments
Customization of size and specifications
Ongoing communication throughout the project
By working closely with customers, we aim to reduce uncertainty and improve overall project efficiency.
Frequently Asked Questions (FAQ)
A: P550 and P530 are both high-nitrogen austenitic stainless steels. However, P550 offers higher yield strength and superior resistance to pitting corrosion compared to P530. While P530 is suitable for standard directional drilling, P550 is the preferred choice for high-load, deep-well, and high-chloride environments where maximum tool durability is required.
A: Yes. All our non-magnetic drill collars are manufactured and tested in strict accordance with API Spec 7-1 and SY/T 5146 standards. Each unit undergoes rigorous inspections, including ultrasonic (UT) and magnetic particle (MT) testing, to ensure zero defects before leaving the factory.
- A: We achieve ultra-low magnetic permeability through precise chemical composition control (high Cr, Mn, and N) and optimized cold-working processes. We test every batch according to ASTM A342 standards to ensure the magnetic properties remain stable even under the most demanding downhole conditions, preventing any interference with MWD/LWD signals.
A: Absolutely. We provide both slick and spiral (non-mag) configurations. Our standard OD range is from 3 1/8" to 11", and lengths up to 31 ft (9.45 m). We can also customize the bore diameter and thread connections (API REG, NC, FH) to meet your specific project requirements.
A: Yes, we welcome and support third-party inspections from recognized agencies such as SGS, BV, or ABS. We provide full material traceability and can supply original Material Test Reports (MTRs) and 3.1 certificates for every order to ensure full transparency and quality assurance.
