AISI 4140 (42CrMo) Shaft Forging Manufacturer

Description

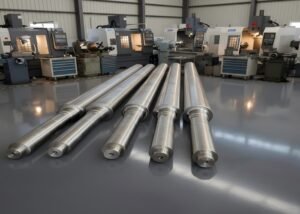

Description: Custom 4140 Shaft Forgings with Superior Strength

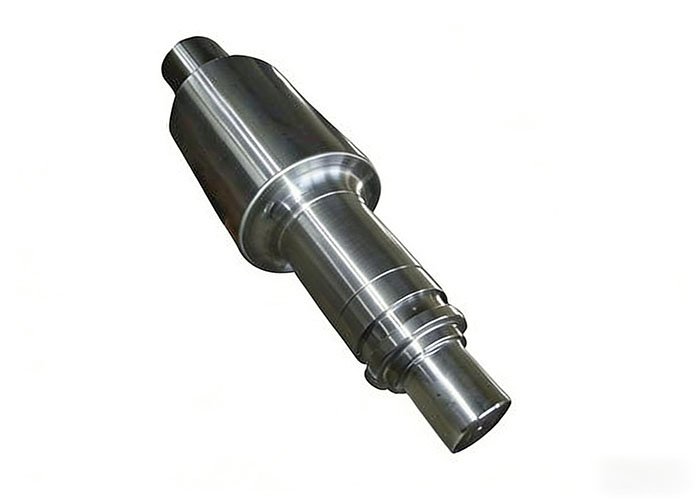

AISI 4140, also known as 42CrMo, has become the preferred material for shaft forgings because it delivers a rare combination of strength, toughness, wear resistance and fatigue performance. At TIPTOP FORGING, we focus specifically on forging the shaft from 4140 material to achieve stable, long-term performance in demanding environments. Compared with castings or machining from solid bars, 4140 shafting offers a higher level of structural integrity and longer service life, especially in high-torque rotating equipment. Our experience covers a wide range of applications, including marine shaft forging, turbine shaft forging, rotor shaft forging, forged step shafts and axle shaft forging, all customized to meet individual project requirements.

Why AISI 4140 is Superior  for Shaft Forgings

For heavy-duty shaft forgings, 4140 is the better solution. With higher carbon content and superior hardenability, AISI 4140 offers greater tensile strength, yield strength and wear resistance, which translates into stronger load-bearing capability and longer fatigue life. For shafts that continuously transmit torque and operate under vibration, impact or alternating stress, 42CrMo material provides an obvious advantage.

Manufacturing Benefits of 4140 Open-Die Shaft Forging

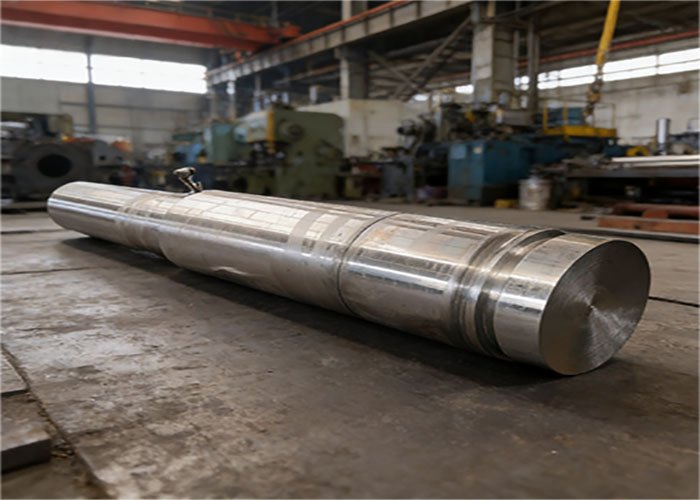

TIPTOP FORGING employs open-die forging for the production of AISI 4140 shafts. This method guarantees a continuous and directional grain flow along the shaft axis. Such a microstructure change greatly increases the toughness and fatigue resistance of the material while internal defects like porosity or shrinkage are completely removed. Moreover, open-die forming is versatile enough to allow the production of shafts with unusual geometries such as eccentric shaft forging, rotor shaft forging, forged step shaft, and tail shaft forging. Besides, the process has pretty good dimensional flexibility and is cost-efficient for large or low-volume custom shafts, which is why it is suitable for heavy machinery, energy systems, and marine propulsion purposes. The heat treatment, as well as the final machining, come as the last steps of the process for each shaft to have the exact dimensional accuracy and mechanical performance.

Application Areas of 4140 Shaft Forgings

One of the most important uses of 4140 shaft forgings is in the energy sector. The main shafts of wind turbines, the shafts of hydro generators, and the rotors of steam turbines in thermal and nuclear power plants are examples of such usage. Under such conditions, these shafts are always subjected to very high torque loads and long-term cyclic stress, which is why the properties of strength and fatigue resistance become absolutely necessary. On the other hand, 42CrMo marine shafts serve as propellers, intermediates, transmission and tail shafts, rudder systems, where the harsh saltwater environments require not only mechanical strength but also corrosion protection. Moreover, heavy industrial equipment is also dependent on forged 4140 shafts which are used in the likes of rolling mill spindles, crusher main shafts, and axle shafts employed in construction machinery. The forged shaft, in fact, is the core component that guarantees safety, stability, and efficiency during the operation.

Mechanical Properties and Stability of 4140 Shafting

The mechanical characteristics of AISI 4140 form one of the main reasons for selection of the material in shaft forgings. Generally, after quenching and tempering, the metal obtains the following strength values and hardness: tensile strength of 950–1150 MPa, yield strength of 800–1000 MPa and hardness ranging from HRC 28 to 32. The high toughness is still preserved when the temperature drops and the interior grain structure that was formed during the forging is capable of withstanding very high impact forces. The combination of strength and ductility is what makes the mentioned shafting able to function reliably under continuous rotation and heavy loading conditions, thus they lead to fewer occurrences of failure and lower maintenance costs throughout the equipment service ​‍​‌‍​‍‌​‍​‌‍​‍‌life.

Inspection, Standards and Quality Assurance

Every 4140 shaft forging produced by TIPTOP FORGING is manufactured and inspected according to international standards, ensuring safe and reliable operation. Ultrasonic testing is carried out to detect internal defects across the entire cross-section, while magnetic particle or penetrant Testing is used to inspect surface conditions and detect microcracks. Material certificates, chemical composition reports and mechanical property results are provided with each delivery. Controlled heat treatment and final machining ensure dimensional stability, straightness, and balanced performance, even in large shaft forgings.

Custom Manufacturing by TIPTOP FORGING

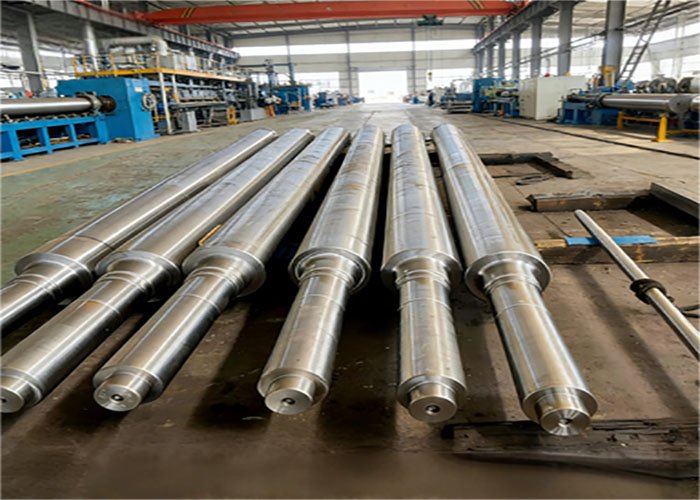

TIPTOP FORGING designs and manufactures AISI 4140 forged shafts based on customer drawings and specifications. Our production capability supports shafts up to 15 meters in length, 1.2 meters in diameter, and single piece weights up to 25 tons. The combination of open-die forging, heat treatment, and precision machining enables us to supply high-performance parts for power generation, marine propulsion, mining and metallurgical machinery, and other demanding industries. For special projects, AISI 4130 shaft material and stainless steel can also be supplied, depending on operating conditions and customer requirements.

Conclusion: AISI 4140 Remains the Best Choice for High-Performance Shaft Forgings

AISI 4140 (42CrMo) continues to be the preferred material for shaft forgings because it offers higher strength and wear resistance than 4130, together with reliable fatigue performance under long-term cyclic loading. Whether used in turbine shaft forging, marine shaft forging, eccentric or rotor shaft forging, the material ensures strong and stable performance. For customers seeking heavy-duty, customized shaft forgings that can withstand torque, vibration, shock loading and harsh operating environments, TIPTOP FORGING delivers reliable solutions with complete technical support, inspection documentation and competitive lead times.
