AISI 4145 Four-Quadrant Hardness Forged Bar

Description

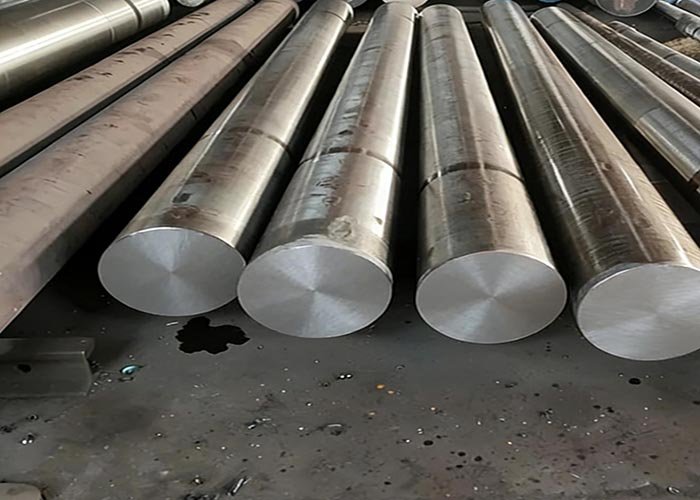

AISI 4145H Forged Bar Stock Overview

AISI 4145H four-quadrant hardness forged bars represent a high-end quality standard in the oil and gas industry, especially for drill tool manufacturing. As a premium forge bar product, this material is specifically designed for high-load, high-risk operating environments.

With exceptional internal uniformity and deep hardenability, these forged bar stock products provide not only high fundamental strength but also predictable and repeatable performance through strict process control. This reliability is critical in the energy industry, where the cost of a single well intervention is extremely high.

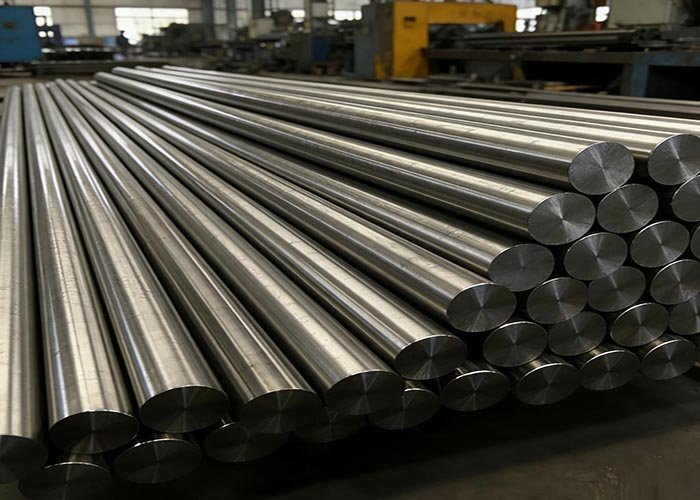

Material Characteristics of AISI 4145H Forged Steel Round Bars

AISI 4145H is a chromium–molybdenum low-alloy high-strength steel. The “H” suffix indicates guaranteed hardenability, making it particularly suitable for large-section forged steel round bars.

This grade is widely used for manufacturing drill collars, heavy-weight drill pipes, and other high-strength downhole drilling tools. Key material characteristics include high strength, high hardness, excellent hardenability, and superior wear resistance, which distinguish AISI 4145H from standard forged bars.

Four-Quadrant Hardness Testing for Forged Bars

Four-quadrant hardness testing is a core quality control method for evaluating the heat treatment quality of large-section forged bars. By measuring hardness at four specific locations on the bar cross-section, this test comprehensively assesses material uniformity, hardenability depth, and internal quality.

Our AISI 4145H four-quadrant hardness forged bars can be tested according to customer requirements. All measured points meet the hardness range specified in the technical agreement. After heat treatment, the absolute hardness typically reaches 285–321 HBW, with excellent consistency.

General requirement: ΔH ≤ 30 HBW or 3 HRC

High-end requirement: ΔH ≤ 20 HBW or 2 HRC

This ensures that each forge bar delivers stable mechanical performance regardless of orientation.

Applications of AISI 4145 Four-Quadrant Hardness Forged Bars

AISI 4145H forged bars are primarily used in demanding, high-load applications, including:

Oil and Gas Exploration: Drill collars, stabilizers, drill pipe connectors, fishing tools, and directional drilling tools

Heavy Machinery: High-load spindles, drive shafts, heavy-duty gears, and bearing housings

Aerospace: Structural components requiring high tensile strength and controlled wear resistance

Mining Engineering: Rock drilling tools and main shafts for mining crushers

In deep-well drilling, these forged steel round bars can withstand enormous torsional forces, absorb high-frequency vibration, prevent drill string failure, and act as both structural connectors and counterweights at the bottom of the drill string.

FAQ About AISI 4145H Forged Bars

Q: What are the main advantages of AISI 4145H four-quadrant hardness forged bars?
A: These forged bars feature a dense internal structure that eliminates casting defects such as porosity and segregation. The optimized fiber flow and heat treatment ensure consistent hardness, an excellent balance between yield strength and impact toughness, and long fatigue life.

Q: Why is four-quadrant hardness testing important for forged bar stock?
A: Four-quadrant control ensures that mechanical properties remain consistent regardless of loading direction, significantly reducing the risk of brittle fracture in downhole tools.

Q: Which products typically require four-quadrant hardness forged bars?
A: Drill collars, heavy-weight drill pipes, and other high-strength downhole drilling tools, as well as critical base components for high-end industrial manufacturing.
