Description

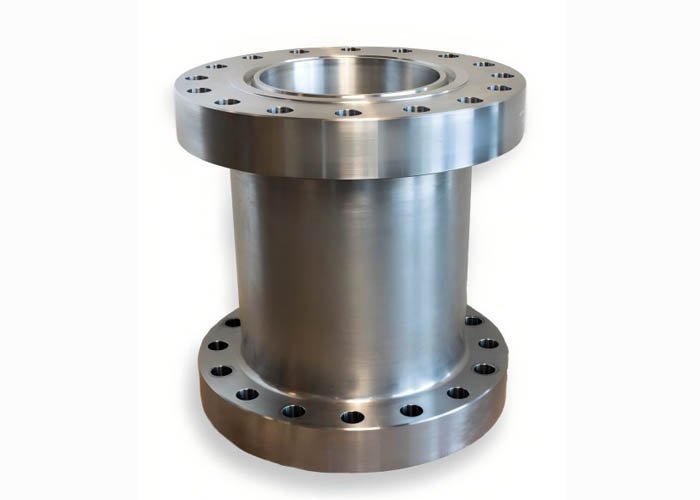

TIPTOP FORGING manufactures high-quality API 16A drilling spools designed for critical pressure control applications in oil and gas drilling operations. As a professional drilling spools manufacturer, we supply forged drilling spools in various pressure ratings, bore sizes, and structural configurations for use in BOP drilling spool assemblies and wellhead systems.
Introduction to Drilling Spool Forgings
A drilling spool is a key pressure-containing component installed within a blowout preventer (BOP) stack. It is widely used as a connection and circulation element in well control systems.
Unlike fabricated or cast components, drilling spool forgings serve as the structural core of the spool body, providing superior strength, integrity, and long-term reliability under high-pressure drilling conditions.
Materials for API 16A Drilling Spools
To meet the strict performance requirements of drilling spool in BOP applications, TIPTOP FORGING selects proven high-strength alloy steels, including:
AISI 4145H
AISI 4130
Other API-approved alloy steel grades upon request
These materials offer:
Excellent resistance to extremely high internal pressure and external loads
Good hardenability for thick-wall forgings
Resistance to hydrogen sulfide stress corrosion cracking (SSCC), suitable for sour service environments
All materials comply with API 6A / API 16A and relevant well control safety standards.
Heavy-Duty Forging Process for Drilling Spools
Drilling spools are typical heavy forgings with thick walls and complex internal stress requirements. TIPTOP adopts heavy-duty open-die forging technology to manufacture drilling spool forgings with superior internal quality.
Compared with cast spools, forged drilling spools offer:
Higher material density
Improved impact toughness
Superior fatigue resistance under cyclic pressure and vibration loads
This forging process is essential for long-term reliability in API 16A drilling spools used in critical well control operations.
Core Functions of a Drilling Spool in BOP Systems

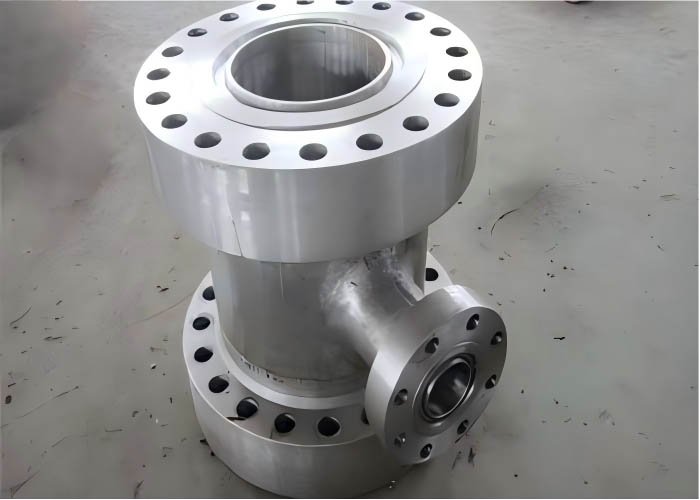

A forged drilling spool is typically a hollow, thick-walled cylindrical or rectangular body with flanged or clamped connections at the top and bottom, and one or two side outlets. Its main functions include:
Structural Connection and Pressure Isolation
The bop drilling spool acts as an independent pressure-bearing body. Its forged structure ensures a reliable pressure boundary between connected BOP components, effectively maintaining system integrity.
Establishing Well Control Circulation Channels
Through the side outlets, the drilling spool allows controlled circulation of drilling fluid—pumping clean fluid into the well and discharging contaminated fluid—enabling safe bottomhole pressure management.
Providing Operating Space for Wellhead Tools
The vertical height of the drilling spool creates additional operating space at the wellhead, reducing the need to frequently dismantle BOP equipment and improving overall operational efficiency during drilling and workover activities.
Classification of Drilling Spools
Classification by Number of Outlets
Single outlet drilling spool
Double outlet drilling spool (most commonly used)
Classification by Pressure Rating (API 6A & API 16A)
Common pressure classes include:
2000 psi (13.8 MPa)
3000 psi (20.7 MPa)
5000 psi (34.5 MPa)
10000 psi (69.0 MPa)
15000 psi (103.5 MPa) and above (for HPHT and ultra-deep wells)
Drilling Spool Dimensions and Bore Sizes
Drilling spool dimensions are designed to match the BOP stack bore size. Common bore sizes include:
7-1/16″
9″
11″
13-5/8″
16-3/4″
18-3/4″ and larger (offshore drilling applications)
Why Choose TIPTOP as Your Drilling Spools Manufacturer
Forged Strength for Critical Well Control Points
We understand that drilling spools are not ordinary connectors but critical pressure barriers. TIPTOP FORGING ensures every drilling spool forging delivers excellent mechanical properties, fatigue resistance, and impact toughness, even under complex and fluctuating drilling conditions.
Full Compliance with API Standards
All drilling spools are manufactured in strict accordance with API 6A, API 16A, and ASME standards. Each product is supplied with complete documentation, including:
Material Test Certificates (MTC)
Mechanical property reports
Non-destructive testing records (UT / MT)
Engineering Support Beyond Standard Supply
TIPTOP FORGING is more than a drilling spools manufacturer. With an experienced technical and production team, we provide in-depth engineering support, fast response, and customized solutions tailored to your specific drilling and well control requirements.
Request a Quote for API 16A Drilling Spool Forgings
Every well control system operates under unique pressure, temperature, and operational conditions. Selecting the right drilling spool, material grade, pressure rating, and dimensions is essential to ensuring well safety and long-term reliability.
If you are sourcing API 16A drilling spools, BOP drilling spools, or customized drilling spool forgings, please feel free to share your technical drawings, pressure class, and service conditions.
Our team will provide a professional evaluation and a reliable forging solution tailored to your project.
📩 Contact TIPTOP FORGING today to discuss your drilling spool requirements and receive a technical quotation.
