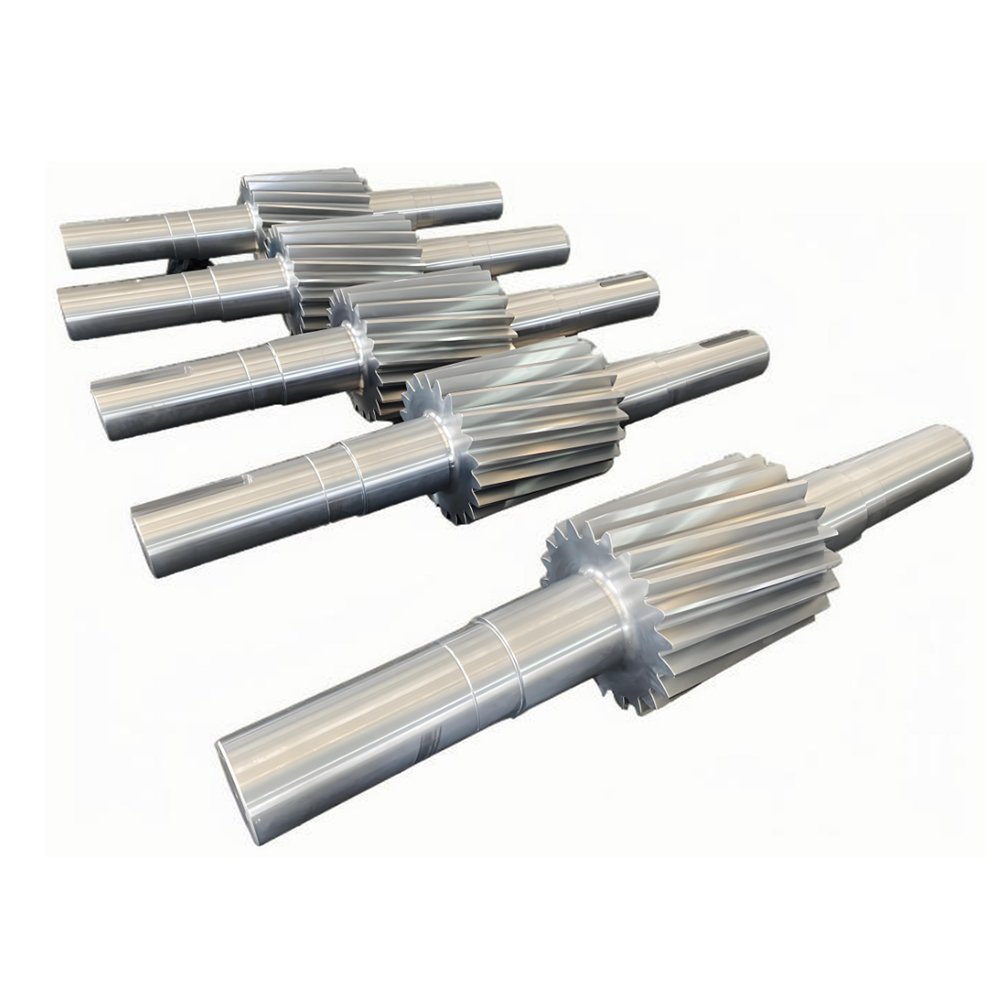

Gear Shaft Forging – Precision Forged Shafts for Heavy-Duty Applications

Product Overview

Gear Shaft Forging is the necessary intermediate factor for manufacturing high-strength, precision-engineered shafts used in annoying industrial applications. Through superior forging techniques, these shafts attain a most appropriate grain float and mechanical integrity, making sure dependable overall performance below excessive torque, shock loads, and cyclic fatigue.



As a expert forging producer in China, we provide customized and popular Gear Shaft Forgings tailor-made to your specifications, with aggressive pricing and world shipping.



What is Gear Shaft Forging?

Gear Shaft Forging is the system of shaping heated metal billets underneath managed strain to produce near-net-shape shafts with extraordinary power and toughness. Unlike solid or utterly machined shafts, solid shafts deliver:



✅ Superior grain float alongside the size of the shaft

✅ Excellent durability and fatigue resistance

✅ Better overall performance below torsional and bending loads

✅ Cost-effective manufacturing for small-to-medium batches



Forged equipment shafts are imperative for automotive, industrial, agricultural, mining, and heavy equipment applications.



Advantages of Our Gear Shaft Forgings

✅ Superior Strength & Fatigue Resistance



Grain float follows shaft geometry, lowering stress risers



Withstands repeated excessive torque and bending loads



✅ Custom Sizes & Shapes



Near-net shapes limit machining time and cost



Fully tailor-made to your drawings and tolerances



✅ Premium Material Options



Carbon steel, alloy steel, stainless steel



Heat-treated for focused mechanical properties



✅ Consistent Quality & Full Traceability



Ultrasonic Testing (UT), MPI, hardness and dimensional inspections



Certified substances with full traceability



✅ Competitive Factory Pricing



Direct manufacturing fee advantage



Flexible manufacturing volumes, from prototypes to manufacturing orders



Typical Applications

Automotive Transmission Shafts



Heavy Equipment Gear Shafts



Wind Turbine Main Shafts



Mining Conveyor Drive Shafts



Industrial Reducer Shafts



Agricultural Machinery Shafts



Material Options

✅ Carbon Steels (C45, 1045, AISI 1050)

✅ Alloy Steels (4140, 4340, 42CrMo, 35CrMo)

✅ Stainless Steels (304, 316, 410)

✅ Other customized grades reachable on request



Heat Treatment Options

✅ Normalized

✅ Quenched and Tempered

✅ Annealed

✅ Carburized or Induction Hardened (as specified)



Product Specifications and Dimensions

Specification	Typical Range / Options
Outside Diameter (OD)	50 mm – 500 mm
Length	Up to 5 meters (customizable)
Weight per Piece	5 kg – 3000 kg
Material Grades	Carbon steel, Alloy steel, Stainless steel
Heat Treatment	Normalized, Q&T, Annealed, Hardened
Tolerances	As per drawing / industry standards
Surface Finish	As forged / Machined / Blasted
Testing Options	UT, MPI, Hardness, Mechanical Tests



Quality Assurance

✅ Certified uncooked substances (EN 10204 3.1 / 3.2 certificates available)

✅ In-process and remaining dimensional inspections

✅ Ultrasonic Testing for inner integrity

✅ Magnetic Particle Inspection (MPI) for floor cracks

✅ Hardness and mechanical checking out as required



Why Choose Our Gear Shaft Forgings?

✅ Advanced Forging Facilities



Modern hydraulic presses and precision hammers



Experienced engineers to optimize your format for forging



✅ Custom Engineering Support



Review of your drawings for forging feasibility



Suggestions to minimize machining and enhance cost-efficiency



✅ Flexible Production Capabilities



From small prototype batches to large-scale production



✅ Export-Ready Service



ISPM-15 licensed timber packaging



Full export documentation and international shipping



Get a Quote for Gear Shaft Forgings

Your equipment’s reliability relies upon on the excellent of its crucial components. Investing in gorgeous Gear Shaft Forgings skill safer operation, decrease renovation costs, and longer carrier life.



👉 Contact us these days to talk about your requirements, request a targeted quote, or get technical recommendation on cloth decision and forging design.
