Description

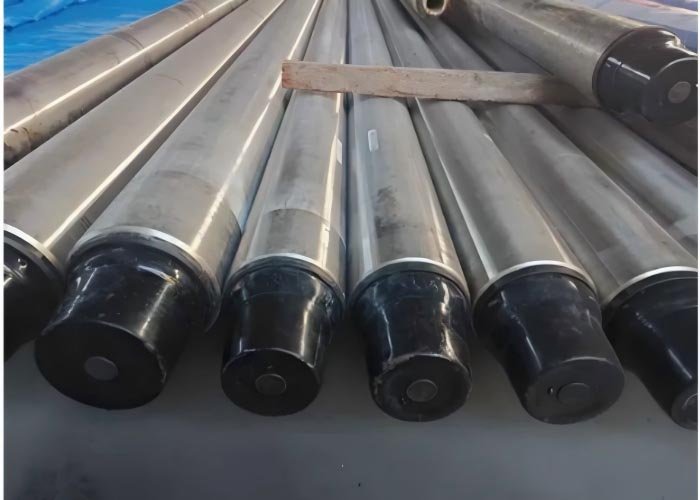

P550 non-magnetic drill collars are essential tools used in oil and gas drilling operations, particularly in directional and horizontal wells. As a premium material grade (UNS S46910), P550 offers higher strength, wear resistance, and stability than traditional non-magnetic materials.
Nowadays, in the drilling industry, obtaining precise data through Measurement While Drilling (MWD) and Logging While Drilling (LWD) systems is a must.
Thanks to the stable non-magnetic environment established by the P550 non-magnetic drill collars, not only can the signals be transmitted reliably but also the complex geological formations with strong magnetic interference can be easily managed.
As a forging manufacturer specializing in this niche, TIPTOP Forging is committed to delivering high-quality P550 non-magnetic drill collars that meet the demands of high temperature, high pressure, and corrosive downhole environments.
Function and Working Principle of P550 Non-Magnetic Drill Collars
The insertion of P550 non-magnetic drill collars occurs in the area of the drill string where MWD and LWD tools are located.
They serve to ensure that the magnetic interference brought about by steel constituents is negated, leading to the acquisition of accurate data on wellbore orientation and characteristics.
They are also handy in:
- Measuring inclination and azimuth accurately
- Conducting gamma and resistivity logging
- Exercising directional control while negotiating complex well paths
In scenarios involving high-magnetic formations or extended-reach wells, having a stable non-magnetic zone supplied by P550 NMDC is indispensable for achieving desired results in drilling.
Material Characteristics of P550 (UNS S46910)
P550 is a high-strength non-magnetic stainless steel that was specially tailored to meet rigorous drilling needs.
Main features comprise:
- Very strong yield strength (≥ 965 MPa), appropriate for deep and ultra-deep well drilling
- Exceptional resistance to wear caused by high friction
- Enhanced toughness to withstand shock loading without failure
- Minimal magnetic permeability (μr ≤ 1.005), facilitating accurate MWD/LWD readings
- Resistance to corrosion in H₂S and CO₂ containing atmospheres
Before commercialization, all products are thoroughly checked through 100% spectrographic analysis and physically and chemically tested by third independent parties under API and DS-1 standards to ensure their quality.
Other Material Options for Non-Magnetic Drill Collars
In addition to P550, other materials can be selected based on specific drilling conditions:
Wear-Resistant (WR) Series
Optimized for abrasive formations, extending service life in high-friction environments.
15-15HS MAX / Modified 316L
Provides excellent resistance to sulfide stress corrosion cracking (SSC), suitable for sour gas wells.
Compared with these materials, P550 offers a better balance between strength, durability, and long-term performance in heavy-duty drilling operations.
Types of P550 Non-Magnetic Drill Collars
Based on drilling requirements, P550 NMDC are available in different structural designs:
Standard Type
Suitable for conventional vertical and directional drilling.
Spiral Type
Designed with spiral grooves to reduce contact with the wellbore, minimizing torque and differential sticking. Ideal for horizontal and extended-reach wells.
Customized configurations such as double pin and double box connections are also available.
Technical Specifications of P550 NMDC
| Parameter | Range |
| Material | P550 (UNS S46910) |
| OD | 3-1/2″ – 11″ (88.9–279.4 mm) |
| ID | 1-1/4″ – 4-1/2″ |
| Length | 9 m / 9.5 m / 10 m |
| Thread Type | API REG / NC / Premium |
| Magnetic Permeability | μr ≤ 1.005 |
| Yield Strength | ≥ 965 MPa |
Heat treatment: Solution treatment + aging
All products support non-standard customization based on well design requirements.
Applications of P550 Non-Magnetic Drill Collars
P550 NMDC are widely used in:
- Directional and horizontal drilling
- Logging While Drilling (LWD) operations
- High-magnetic formations
- Salt and gypsum formations
- High-temperature and high-pressure wells
- Extended-reach and ultra-deep wells
They are particularly suitable for drilling environments requiring high strength and long service life.

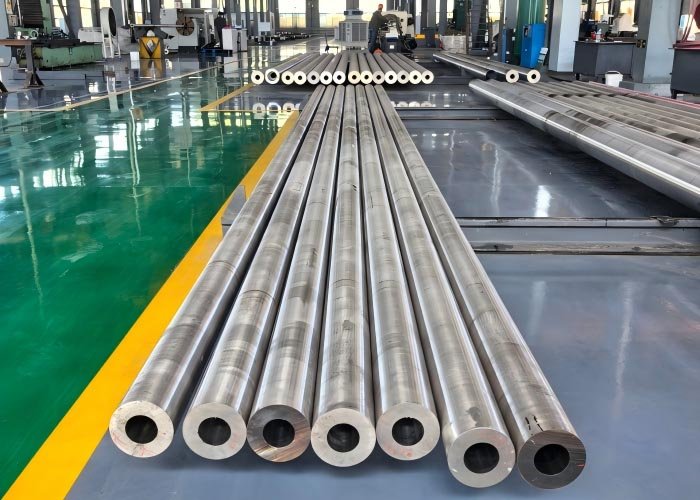

Manufacturing Process and Quality Control
As a forging-based manufacturer, we maintain full control over the production process:
- Steel ingot sourcing with strict supplier selection
- Forging using large-capacity presses
- Heat treatment (solution + aging)
- Precision CNC machining
Each product undergoes:
- Relative magnetic permeability testing (μr ≤ 1.005)
- Full mechanical property testing
- Ultrasonic testing (UT)
- Magnetic particle testing (MT)
This ensures stable performance and reliability in high-magnetic-field environments.
Advantages of Our P550 Non-Magnetic Drill Collars
Full Forging Process Control
Ensures dense internal structure and eliminates casting defects.
Strict Non-Magnetic Management
Dedicated production lines and full-process magnetic control.
High Precision and Long Service Life
Optimized heat treatment ensures both strength and toughness.
Fast Delivery and Customization
Flexible production capacity for urgent and custom orders.
Why Choose P550 for NMDC Applications
Compared with conventional non-magnetic materials, P550 provides:
- Higher strength for heavy-duty drilling
- Better wear resistance in abrasive formations
- Improved fatigue resistance for long drilling cycles
This makes P550 an ideal choice for operators seeking higher efficiency and reduced tool failure.
FAQ – P550 Non-Magnetic Drill Collars
What is P550 material?
P550 is a high-strength non-magnetic stainless steel (UNS S46910) used in advanced drilling tools.
Why are P550 NMDC used in MWD/LWD operations?
They provide a stable non-magnetic environment, ensuring accurate measurement data.
What standards do P550 NMDC follow?
They comply with API and DS-1 standards.
Can P550 NMDC be customized?
Yes, dimensions, connections, and specifications can be customized.
Contact for Custom P550 NMDC Solutions
We provide customized P550 non-magnetic drill collars based on drilling conditions, including material selection, dimensions, and connection types. Contact us for technical support and quotations.
