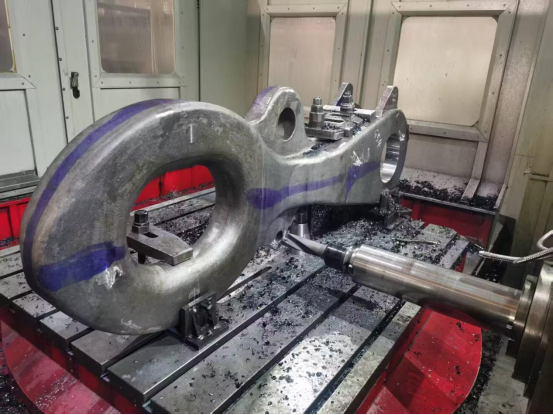

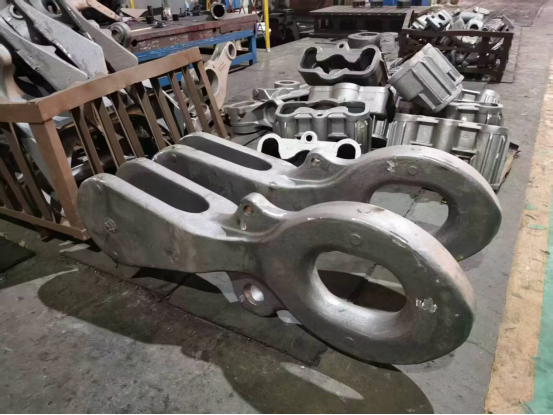

API -8CT TDS top drive bail（lifting bail) for oil & gas drilling

Description

1. What is a Top Drive Bail? What is its role in drilling operations?

A Top Drive Bail (also known as a top drive lifting ring or elevator link) is a high-strength, ring-shaped forged load-bearing component that connects the Top Drive Drilling System (top drive) to the drill pipe, elevator, and drill string. It is a critical load-bearing safety component for the well center in drilling operations. It typically features a closed-loop U-shape/double-ring structure and is used in conjunction with pins and an elevator assembly.

Functions:

• Load Bearing & Force Transmission: Carries the entire weight of the drill string, drill pipe, and downhole tools, smoothly transmitting the main load from the top drive to the drill string, withstanding tensile loads throughout tripping operations.
• Rotational Adaptation: Works with the top drive’s rotary mechanism, rotating synchronously with the drill string during rotary drilling without jamming or deforming.
• Hoisting During Tripping: Serves as the load-bearing pivot point for hoisting during tripping in/out and making connections, replacing the traditional drawworks hook as a bail adapted for the top drive structure.
• Safety Buffering & Limiting: Possesses high tensile strength and impact resistance to handle sudden shock loads (e.g., snubbing during tripping, getting stuck and jarring loose), ensuring hoisting safety at the well center.
• Mating & Connection: Standardized interfaces for matching with the top drive main body, hydraulic tongs, and elevator, enabling quick assembly/disassembly, locking, and positioning.

2. Common Materials for Top Drive Bails

• 34CrNi3Mo, 30CrNi2MoA: These are typical materials for top drive reducer bails in the petroleum industry, offering excellent comprehensive mechanical properties. However, the complex shape and high dimensional accuracy make forging difficult.
• High-Quality Alloy Steel: Meeting API 8C standards, we use special high-quality alloy steel for integral forging. After quenching and tempering (heat treatment), the alloy steel exhibits excellent properties such as low-temperature resistance, high strength, and good toughness, meeting requirements for extreme cold weather conditions.
• H2S Resistant Alloy Steel: Some high-performance top drive bails and related components are designed with H2S resistant alloy steel, providing excellent corrosion resistance and durability.

3. Top Drive Bail Size Range Our Company Can Manufacture

• Small Capacity: Rated Load 150T–250T; Cross-sectional thickness 60–90mm; Inner opening width 180–280mm; Overall length 500–
• Medium Capacity (Most Common): 300T–500T; Cross-sectional thickness 90–140mm; Inner width 280–420mm; Overall length 800–
• Large Capacity (Deep Well/Offshore Top Drive): 600T–1000T; Cross-sectional thickness 140–220mm; Inner width 420–650mm; Overall length 1300–

4. Advantages of Our Company’s Top Drive Bails

• Fully Integrated In-House Forging: Owns 10,000-ton hydraulic forging equipment; integrated production from billet forging, heat treatment, machining, to NDT – no outsourcing, ensuring full quality control.
• Strict Safety Inspection System: 100% MT + UT dual NDT on each bail. Tensile test specimen testing per piece; provides load certificate compliant with API drilling hoisting specifications.
• Full Size Coverage + Fast Customization: Standard 150T–1000T forged blanks in stock. Non-standard drawings – forged blanks ready in 3–7 days; controllable machining lead time.
• Mature & Stable Heat Treatment Process: Computer-controlled quenching & tempering production line ensures uniform internal/external hardness; fatigue resistance and impact resistance far exceed small workshop levels.
• Direct Replacement for Imports: Dimensions, load ratings, and mounting interfaces 1:1 replaceable with original Varco or domestic brand bails; price is 30%–50% lower than imports.
• Comprehensive After-Sales Warranty: Finished products come with certificate of conformance, NDT reports, and load test reports. Clear warranty period; can cooperate with third-party inspection/supervision.
• Surface Strengthening Treatment: Shot blasting after forging to remove scale; can apply black oxide, anti-rust coating, or zinc plating for enhanced durability in humid downhole corrosive environments.

5. What are the advantages of forged Top Drive Bails compared to cast ones?

Top Drive Bails are dynamic load safety components; forging is mandatory by industry standards. Casting is prohibited for load-bearing top drive components except for very low-cost, non-standard small parts.

5.1.  Dense Internal Structure, No Defects: Casting is prone to porosity, shrinkage cavities, sand holes, and intergranular cracks. Forging uses high temperature and pressure, creating continuous metal flow lines matching the bail’s stress profile – dense, zero porosity internally.

5.2.  Significantly Superior Mechanical Properties: For the same material, forged tensile strength, yield strength, and impact toughness are 30%–80% higher than cast. Fatigue life is increased several times, suitable for repeated shock loads during tripping.

5.3.  Superior Fracture & Fatigue Resistance: Under long-term cyclic tensile loads, tiny defects in castings easily propagate and cause fracture. Forged metal fibers are continuous, offering higher resistance to crack propagation, preventing major well-center falling accidents.

5.4.  Dimensional Stability & Reliable Load Capacity: Castings have large shrinkage and deformation during cooling, leading to poor accuracy for high-capacity bails. Forgings have minimal deformation, controllable heat treatment changes, and reliably meet API standard load ratings.

5.5.  Longer Service Life: Under the same operating conditions, forged parts have a service life 2-3 times longer than cast parts, reducing replacement frequency and downtime.

5.6.  Mandatory Safety Compliance: Offshore drilling, high-pressure deep wells, and API-certified projects prohibit the use of cast lifting bails; safety codes only recognize forged load-bearing rings and hooks.

5.7.  Abrasion & Impact Resistant: Forged surfaces have a dense, uniform hardness; they resist chipping and edge cracking from site impacts and friction. Castings are brittle, prone to cracking and shattering upon impact.

6. FAQ

6.1. What is the normal service life of a Top Drive Bail? When should it be replaced?

Normal Design Service Life:

• Land conventional drilling (300-500T load, <300 operating days/year): 3–5 years.
• Offshore platforms, ultra-deep wells, high-load, frequent tripping conditions: 2–3 years.
• Properly stored, rust-protected, rarely used items may be extended, but maximum not exceeding 6 years.

Situations Requiring Immediate Replacement:

• Cracks, inclusions, or internal damage detected by MT/UT.
• Excessive wear: cross-sectional wear depth >10% of original thickness.
• Plastic deformation: opening spread wider, overall bending, local indentation.
• Corrosion pits >3mm deep, extensive rusting and flaking.
• Experienced overload/snatching, drop impact, or fire/high heat.
• Reached design life – recommend NDT re-inspection regardless of appearance; replace if unqualified.
• Nameplate load rating is illegible or worn off.

6.2. Can you manufacture non-standard sizes or special material Top Drive Bails?

Yes, full custom manufacturing is available:

• Non-Standard Sizes: Support customer-provided drawings, old part mapping, reverse replication of old equipment dimensions. Non-standard capacities (e.g., 200T, 750T, other intermediate tonnages), special opening widths, extended/shortened bodies, and custom interface shapes – can all be custom forged. Small batches and single-piece custom orders accepted.
• Special Material Customization:

Low-Temperature Conditions: Special impact-tested modified alloy steel for arctic/extreme cold oil fields.

Highly Corrosive Conditions: Can use corrosion-resistant alloy forgings or apply post-forge zinc diffusion coating/heavy-duty anti-corrosion coating.

Ultra-High Load Special Steel: Ultra-high strength nickel-molybdenum alloy steel for kilometer-deep ultra-deep wells and high-load offshore top drives.

Supporting Services: For custom parts, material certificates, NDT reports, and load test certificates are provided. Can cooperate with third-party supervision/inspection throughout the process.
