Description

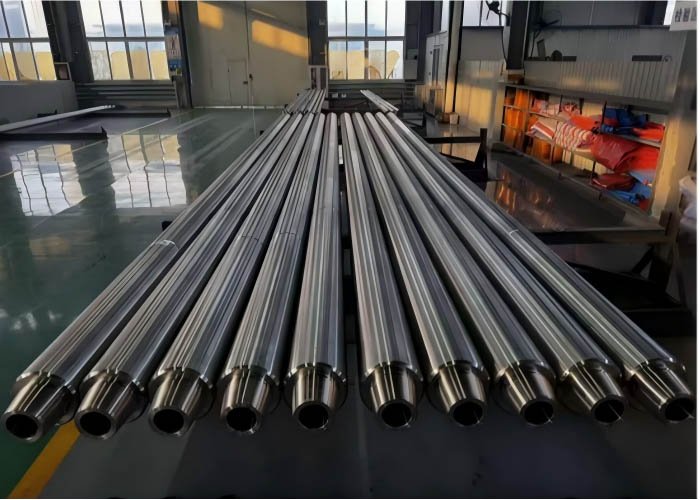

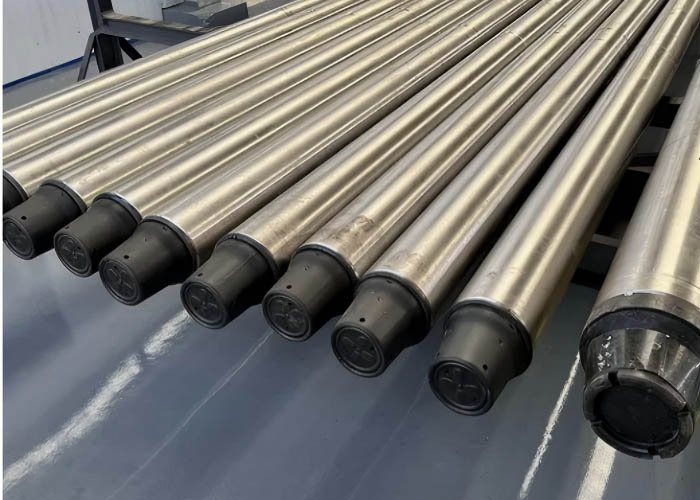

Featuring high-purity austenitic stainless steel, TIPTOP’s P650 non magnetic drill collar (NMDC) incorporates precision forging techniques that achieve minimally low magnetic permeability (μr ≤ 1.005). This coupled with strength, good fatigue resistance and robustness in deep, high-pressure and corrosive well environments give the product an edge.
Why Are Non Magnetic Drill Collars Indispensable in Directional Drilling?
Primary measurement parameters such as azimuth, toolface orientation, and inclination as well as position information cannot be obtained reliably if there is interference between the magnetic fields generated by standard drill collars and the sensitive downhole instruments.
Placing a non magnetic segment in the drill string by the means of a P650 NMDC ensures that the measurement environment is stable. The MWD/LWD instruments can then communicate accurate real-time information that is indispensable for trajectory control, geosteering, and formation evaluation. When drilling very expensive wells, the accuracy of the results affects the economic returns so strongly that using NMDC first of all becomes a necessary option.
Material and Performance: Fabricated for Strength and Stability
A non magnetic drill collar’s capabilities depend on both the makeup of its material and how it is processed. Mechanical strength, magnetic neutrality and corrosion resistance are three qualities that P650 alloy has been optimized for.
Pitting and stress corrosion cracking forms are among the problem areas that the alloy can protect against in terms of corrosion. In fact, it is well suited to ones with the presence of H₂S, CO₂ and high salinity formation fluids. This is achieved through the high levels of manganese and chromium together with the controlled molybdenum and nitrogen additions.
Yield strength at a high level (≥ 965 MPa) and tensile strength (≥ 1035 MPa) are retained by the alloy, albeit it does not give in to simple uniaxial loads but is always subjected to complex ones including torsion, compression, and cyclic stress in deep and ultra-deep wells. Long drilling cycles can be further supported greatly by having high impact toughness as well as good fatigue resistance.
From Forging to Final Inspection: Manufacturing Process
Reliability downhole cannot be guaranteed by material performance alone. The manufacturing process is also a key factor in terms of structural integrity and durability.
P650 NMDCs at TIPTOP are crafted with precision forging that enhances grain flow and eliminates defects that are often present in castings or insufficiently deformed structures. Fatigue performance and mechanical uniformity spanning the entire length of the drill collar are significantly enhanced by this forging method.
Subsequent to forging, heat treatment at controlled conditions is utilized to ensure that the microstructure is stable and the trade-off between strength and toughness is optimized. A series of non-destructive testing, from ultrasonic examination to surface crack detection etc is carried out on each item.
These thorough checks ensure that both internal and surface elements are without defects so as not to limit performance. The final result of this stringent manufacturing and inspection process is a drill collar that can perform reliably even when exposed to extreme drilling conditions.
Types of P650 Non Magnetic Drill Collars
To accommodate different drilling requirements, P650 NMDCs are available in multiple structural configurations.
Integral (cylindrical) drill collars are typically used in standard directional drilling applications where structural simplicity and strength are required. Helical drill collars, on the other hand, improve cuttings transport and reduce the risk of differential sticking, making them suitable for complex formations.
For specialized operations, fully customized solutions are available, including tailored outer diameter, inner diameter, length, and thread connections. This flexibility allows the drill collar to be precisely matched to specific well conditions and drilling programs.
Application Scenarios: Where P650 NMDC Delivers Value
The advantages of P650 non magnetic drill collars become most evident in challenging drilling environments.
In MWD and LWD operations, they provide a stable, interference-free environment that ensures accurate data acquisition. In deep and ultra-deep wells, their high strength and fatigue resistance allow them to withstand prolonged exposure to high loads and temperature variations.
In sour gas fields, where corrosion is a major concern, the material’s resistance to H₂S and CO₂ significantly extends service life. Additionally, in geosteering applications, P650 NMDCs support reliable signal transmission, improving formation evaluation accuracy and drilling efficiency.
Engineering Perspective: P650 vs P550 Non Magnetic Drill Collars
Engineering wise, each of these two materials: P550 and P650, is a globally accepted non magnetic material; however, the designers developed them for different performance levels.
Usually, P550 is okay for regular directional drilling operations where the mechanical loads and environmental conditions aren’t too heavy. It maintains a steady non magnetic feature and is mostly chosen for the projects that are cost-oriented.
On the other hand, due to its higher strength, better fatigue resistance, and corrosion performance, P650 is capable of serving deep wells, high-pressure environments, and corrosive formations.
Despite its higher purchase and manufacturing price, in cases where the drilling complexity, well depth or the severity of the environmental situation increase, P650 is the dependable option.
Why Choose TIPTOP P650 Non Magnetic Drill Collars?
What makes you choose a non magnetic drill collar supplier is not only the material they use, but also the manufacturing reliability and the performance in field.
TIPTOP ensures complete traceability of the product, such as heat number, forging records, and heat treatment data, which illustrates transparency and the quality control during the whole production process. Production of all equipment is arranged with API SPEC 7-1 and SY/T 5144, and those products are in line with ISO 9001 and API Q1 systems.
Our P650 NMDCs have successfully demonstrated their efficiency even in the most demanding drilling conditions, supported by our well-established export presence in the Middle East, North America, Russia, and Central Asia. At the same time, we manage production efficiently and with a secure supply chain, which result in us offering quality products in a cost-effective and timely manner.
FAQ: P650 Non Magnetic Drill Collar
Q1: What is the main function of a non magnetic drill collar?
Primarily, it serves to remove any magnetic interference as well as to create a stable setting for the measurement tools of MWD/LWD so that the well trajectory data come out accurate.
Q2: What is the difference between P650 and P550 non magnetic drill collars?
P650 has better strength, fatigue resistance, and corrosion resistance than P550. P550 will be great under normal drilling conditions; however, for deep wells, high-pressure environments, and corrosive formations, P650 is the one that is usually preferred.
Q3: Can P650 NMDCs be customized?
Absolutely. Size, thread connections, and mechanical properties may be adjusted according to the specific desires and drawings of the customer.
Q4: How is product quality ensured?
At each step of the process, a drill collar is subjected to thorough quality checks – ultrasonic testing, surface inspection, as well as complete process traceability – in order to guarantee its durability in downhole operations.
Request a Custom P650 NMDC Solution
If you are working on directional drilling projects and need reliable non magnetic drill collars, our engineering team can help you select the most suitable solution based on your well conditions.
